Delpin Susai Raj Tuesday 12 September 2017

UIToolbar in Xamarin iOS

In this article, you will learn how to Create a Tool bar View Using UIToolbar in Xamarin iOS, using Xamarin Studio.


Introduction

Xamarin is a platform to develop cross-platform and multi-platform apps (for example, Windows phone, Android, iOS). In Xamarin platform, the code sharing concept is used. In Xamarin Studio, Visual Studio is also available.

Browse Code Here



Prerequisites


  • Xamarin Studio.
  • Xcode.


The steps given below are required to be followed in order to Create a Tool bar View Using UIToolbar in Xamarin iOS, using Xamarin Studio.

Step 1

Go To Xamarin Studio.

Click New Solution—> select iOS—>select App--> Choose single View App. Afterwards, click Next.



Step 2

In this step, configure your app. Give the app name (Ex:sample), Organization Identifier. Afterwards, click Next.



Step 3

In this step, give your project name (Ex: Sample) and solution name (Ex: Sample). Give the path of your project. Afterwards, click Create.




Step 4

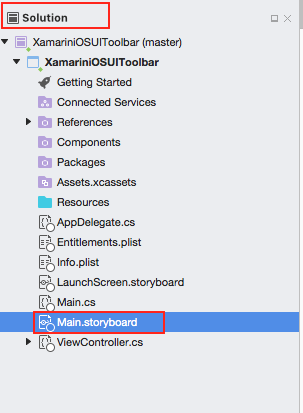

Subsequently, go to the solution. In the solution, get all the files and sources in your project. Now, select Main.storyboard and double click to open Main.storyboard page.
After opening the Main.storyboard, you can design this page, as per your desire.



Step 5

In this step design your app.using storyboard, Toolbox and Properties.

Bottom Toolbar


  1. Toobar
  2. Bar Button Item




Step 6

Top Toolbar


  1. Toobar
  2. Bar Button Item




Step 7


In this step, go to the ViewController.cs page. write the code given below.

ViewController.cs
using System;

using UIKit;

namespace XamariniOSUIToolbar
{
 public partial class ViewController : UIViewController
 {
  protected ViewController(IntPtr handle) : base(handle)
  {
   // Note: this .ctor should not contain any initialization logic.
  }

  partial void UIBarButtonItem69_Activated(UIBarButtonItem sender)
  {
   //Write Action For Tool bar Button
   UIAlertView alert = new UIAlertView("Nofication", "Camera Clicked", null, "OK");
   alert.Show();
  }

  partial void UIBarButtonItem45_Activated(UIBarButtonItem sender)
  {
   UIAlertView alert = new UIAlertView("Nofication", "Item Deleted", null, "OK");
   alert.Show();
  }

  partial void UIBarButtonItem70_Activated(UIBarButtonItem sender)
  {
   UIAlertView alert = new UIAlertView("Nofication", "Item Saved", null, "OK");
   alert.Show();
  }

  partial void UIBarButtonItem66_Activated(UIBarButtonItem sender)
  {
   UIAlertView alert = new UIAlertView("Nofication", "Added to bookmark", null, "OK");
   alert.Show();
  }

  partial void UIBarButtonItem65_Activated(UIBarButtonItem sender)
  {
   UIAlertView alert = new UIAlertView("Nofication", "Add a New items", null, "OK");
   alert.Show();
  }

  public override void ViewDidLoad()
  {
   base.ViewDidLoad();
   // Perform any additional setup after loading the view, typically from a nib.
  }

  public override void DidReceiveMemoryWarning()
  {
   base.DidReceiveMemoryWarning();
   // Release any cached data, images, etc that aren't in use.
  }
 }
}






Step 8

Now, go to Run option , choose Debug and the list of iPhone and iPad simulators, which are available. You can choose any one simulator and run it.



Output

After a few seconds, the app will start running on your iPhone simulator.You will see your app working successfully.



You can see the Toolbar work Successfully.

Summary

This was the process of how to Create a Tool bar View Using UIToolbar in Xamarin iOS , using Xamarin Studio.

Please Share Your Comments and Feedback.
